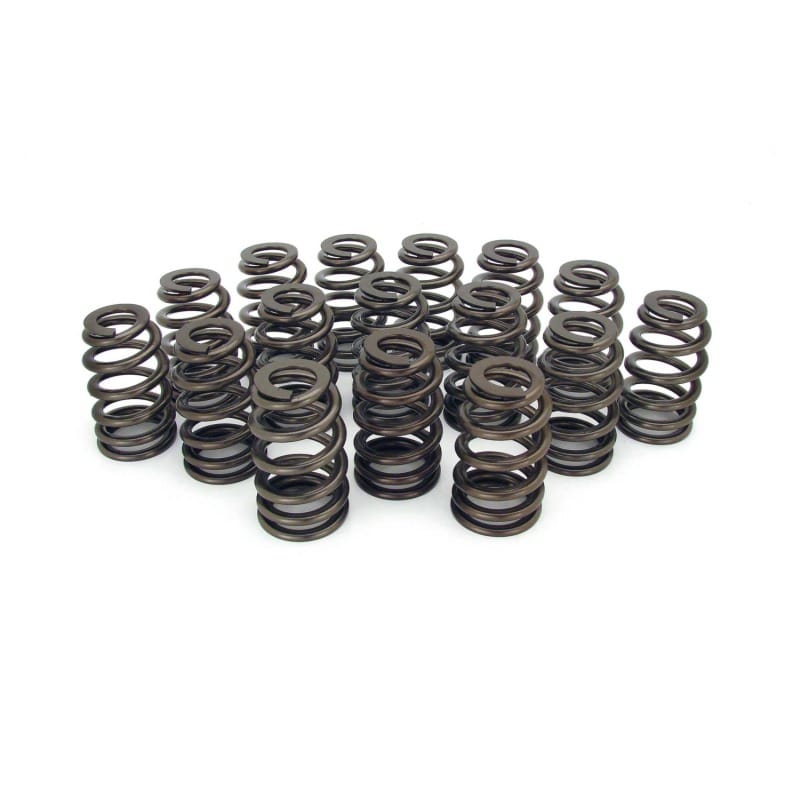

COMP Cams Valve Springs 1.415in Beehive - 26986-16

With a .575" maximum lift, these Beehive Valve Springs were designed for hydraulic or Solid flat tappet as well as hydraulic Roller cams. They work in a variety of small block engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.

Part #

OD

ID

Seat Load

Open Load

Coil Bind

Rate (Lbs./In.)

Titanium Retainer

Steel Retainer

Cup Seat

Shims

26986

Top Bottom

1.0651.415

.6501.000

109 @ 1.800

284 @ 1.175

1.060

280

788

1787, 787, 795

4696

4755
