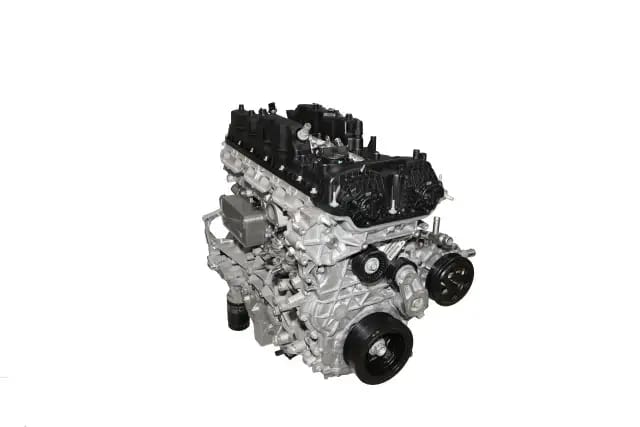

Hurricrate Cat3 Crate Long Block

The HurriCrate series of crate engines employs state-of-the-art engineering and technologies that include two low-inertia, high-flow turbochargers for rapid response to throttle inputs, Plasma Transfer Wire Arc (spray bore) coating in the cylinder bores for an ultra-thin, low-friction wear surface, and high-pressure direct fuel injection. The HurriCrate Cat3 delivers up to 550 horsepower and delivers its max 531 lb.-ft. of torque at just 3,500 rpm.Includes engine assembly components from:
• Fuel injector and rail
• Valve cover
• Cylinder head with valvetrain
• Engine block
• Crankshaft
• Connecting rods
• Piston and ring
• camshafts
• High and low flow water pump
• Oil pump/pick-up/ pan
• Harmonic balancer/idler pulley/ tensioner pulley
• Front timing coverCat3 Crate Long Block Highlights
• Plasma Transfer Wire Arc (PTWA) coating in the cylinder bores for an ultra-thin, low-friction wear surface
• Dual overhead camshafts with wide-range, fully independent variable valve timing
• Dual water-cooled exhaust manifolds integrated in the cylinder head
• Enhanced performance is delivered by lightweight, oil-jet cooled, forged aluminum pistons with an anodized top ring land and a diamond-like coating (DLC) on the pins to minimize friction
• 9.5:1 compression ratio with premium fuel recommendedFEATURES:
• Displacement 186 cu. in.
• Bore 84 mm
• Stroke 90 mm
• Block is aluminum 356+
• Crank material forged alloy steel
• I-beam connecting rods high strength forged steel
• Piston material cast aluminum
• Cylinder head is aluminum 356+ *HP/TQ numbers are reference purposes only as this is not sold as a complete drop in swap

NO PARTS WARRANTY - "AS IS"
